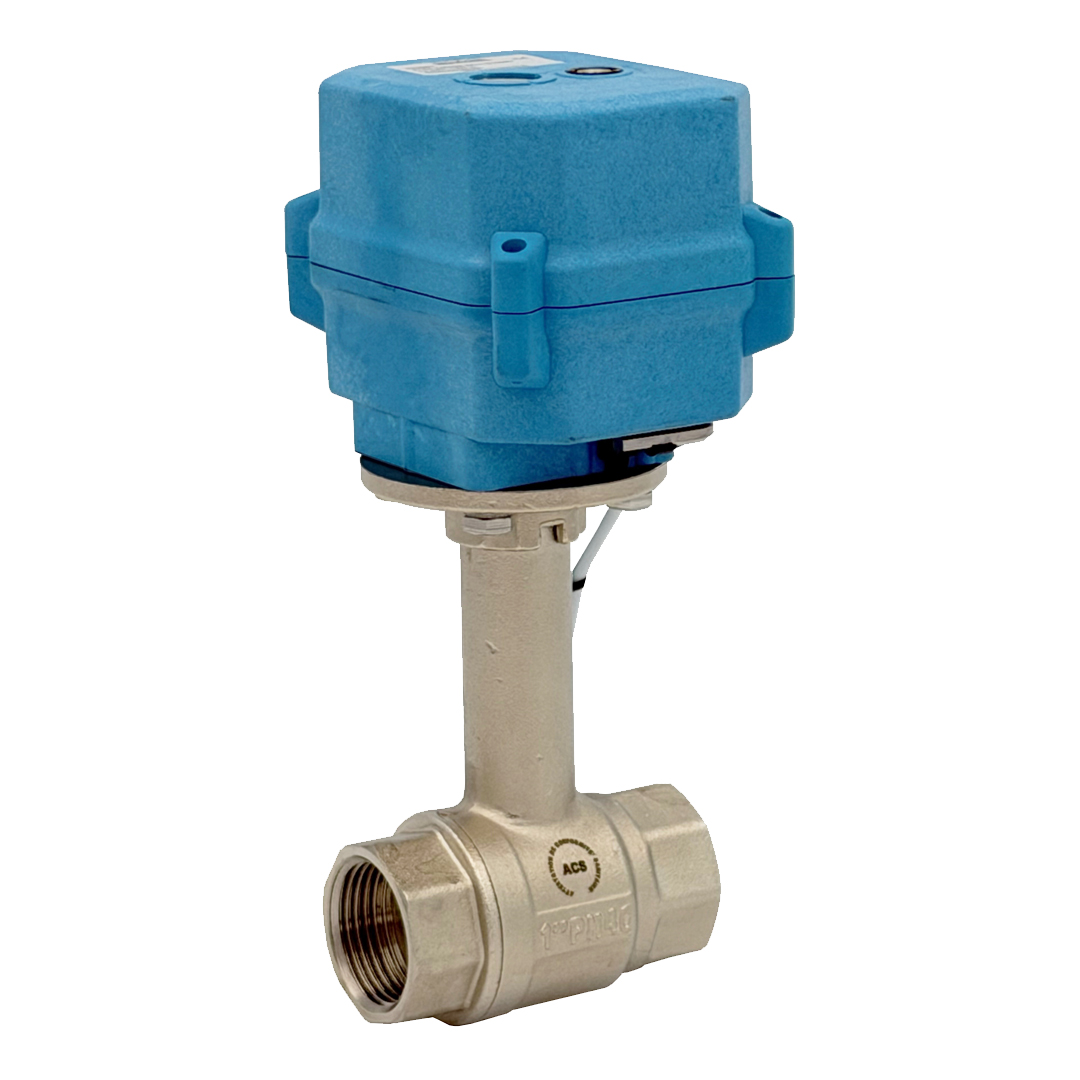

The 500 HC brass ball valve with CW617N body and ball, PTFE seats, and G threaded connections is actuated by an RC 2-wire electric actuator. ACS approved, it operates up to 16 bar and 100°C, ensuring reliable performance.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Manual override | By key |
| Declutchable | No |
| DN | DN15 - 1/2'' |
| Duty service | S4 duty service - 30% |
| Torque limiter | No |
| Recommended location | Indoor |
| Body material | Brass CW617N |
| Number of ways | 2 |
| Bore | Full |
| Power (W) | 30 |
| Connections | BSP FF |
| Anti-condensation heater | None |
| Positive safety | Yes |
| Function | On-off |
| Electric actuator type | T 15 |
| Operating time (s) | 12.0 |
| Voltage | 230 V AC |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Positive safety type | Super capacitor |
| Warranty period | 1 year |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 2-piece body DN15 - 1/2'' | 270102022500 | S1004450 |
€204.51
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN20 - 3/4'' | 270103022500 | S1004451 |
€210.66
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN25 - 1'' | 270104022500 | S1004452 |
€221.99
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN32 - 1''1/4 | 270105022500 | S1004453 |
€245.73
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN40 - 1''1/2 | 270106022500 | S1004454 |
€264.00
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 2-piece body DN50 - 2'' | 270107022500 | S1004455 |
€296.70
(excl. btw)
|
add to cart |
